We develop customized mechatronic drive systems

Ready for the next step

We develop customized mechatronic drive systems. Premium quality from a single source.


Complex mechatronic drive systems only work if all components are of the highest quality and perfectly synchronized. maxon not only develops and produces DC and BLDC motors, gearheads, sensors, and controllers, but is also able to combine the high-quality drive components in a mechatronic system. The benefits: a compact design, components configured specifically for the customer, and the guarantee of obtaining maximum performance from the drive system.


  • Everything from a single source: DC/BLDC motor, gearhead, sensor, electronics, software, housing
  • No compromise on quality
  • Long service life
  • Low power consumption

The invisible door opener

Together with a Swiss elevator manufacturer, maxon developed a system solution for driving elevator doors. Encased in a housing, the door drive can be mounted directly to the lift cab. And this is where its real work starts. There are many different types of elevators, with differently sized cabs, different materials and, depending on the country, different safety standards. After a homing procedure, the controller co-developed by maxon detects the size and weight of the doors, autonomously calculates the optimal parameters, and corrects them if necessary. In just a few steps, the door drive is configured and ready for use. The system solution combines a brushless EC90 flat with customized housing, an integrated EPOS positioning controller and MILE encoder.

More about mechatronics

Better quality of life

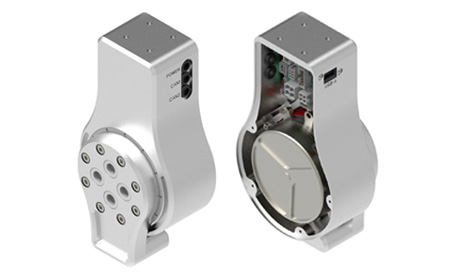

Exoskeletons are used in medicine and industry. The mechatronic support structures help in cases of paralysis, for example, or with post-accident rehabilitation. The system solution from maxon consists of a powerful, brushless flat motor with an encoder, a three-stage planetary gearhead and an EPOS-4 controller. The components are stored in a light yet robust aluminum housing, with not a millimeter of space wasted. The Exoskeleton Drive from maxon is mainly suitable for knee and hip joints.

For clean air

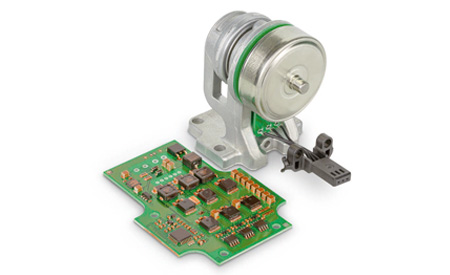

The drive system consists of a customized brushless flat motor plus electronics. This system solution accurately regulates the urea supply for treatment of diesel exhaust gas, which triggers a chemical reaction that breaks down toxic nitrogen compounds. This pollutant separation ensures compliance with the latest exhaust gas standards. The system is primarily used in trucks and is an important contribution from maxon to improve the global climate.

Precise medical technology

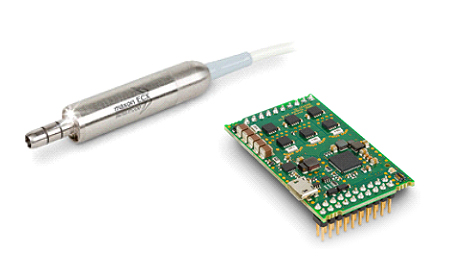

Precision, speed, and user friendliness are indispensable requirements of medical hand-held devices. This sterilizable drive unit from maxon consists of a brushless motor with robust stainless steel housing and cable connection. The motor is controlled by a separate control unit. This is where HPSC (high precision sensorless control) is used, an extremely sophisticated method developed by maxon for the sensorless commutation of brushless motors. During the development of this drive system for dental medicine, particular attention was also paid to its ergonomic properties, so that the hand tool is comfortable to hold. It is available in a range of sizes and power levels.

What does maxon understand by "mechatronic drive systems"?

maxon has extensive knowledge of the perfect interaction of various drive components – and thus of mechatronic drive systems. After all, we've been developing and producing drive components that are among the best in the world for decades now. These include precision motors, gearheads, sensors, and controllers. As system experts, we are your first choice when you need to find sophisticated solutions to complex drive problems and implement these in your application.
