Beyond combinations. Configure your drive individually.

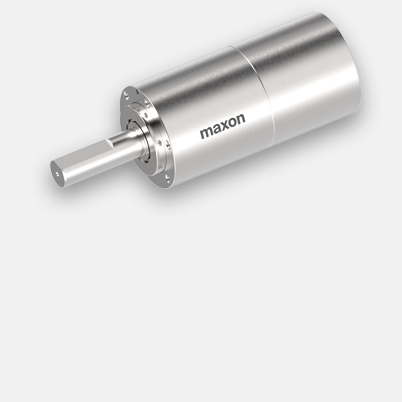

Planetary gearhead GPX 22 UP Ø22 mm, 1-stage | Ultra Performance
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €292.62* |
| 5-19 | €238.94* | |
| 20-49 | €200.94* | |
| from 50 | On request |
Specifications
Technical illustrations
- Dimension drawing
| General information | |
| Gearhead type | GPX |
| Outer diameter | 22 mm |
| Version | Ultra Performance |
| Gearhead Data | |
| Reduction | 3.9 : 1 |
| Absolute reduction | 75/19 |
| Number of stages | 1 |
| Max. continuous torque | 1 Nm |
| Max. intermittent torque | 1.25 Nm |
| Direction of rotation, drive to output | = |
| Max. efficiency | 96 % |
| Average backlash no load | 0.6 ° |
| Mass inertia | 0.82 gcm² |
| Gearhead length (L1) | 21.6 mm |
| Max. transmittable power (continuous) | 66 W |
| Max. transmittable power (intermittent) | 82.5 W |
| Technical Data | |
| Bearing at output | ball bearing |
| Radial play | max. 0.1 mm, 5 mm from flange |
| Axial play | 0 - 0.2 mm |
| Max. radial load | 100 N, 10 mm from flange |
| Max. axial load (dynamic) | 80 N |
| Max. force for press fits | 120 N |
| Max. continuous input speed | 8000 rpm |
| Max. intermittent input speed | 10000 rpm |
| Recommended temperature range | -20...+100 °C |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 56 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
Description
maxon GPX gearheads combine extremely high power transmission with a very short construction. The modular design provides the basis for a customer-specific solution. The reinforced output and bearings enable the transmission of very high torques with excellent efficiency.The mechanical interfaces can be configured.
