This product can no longer be ordered. Please contact our sales support with the form. Thank you
Specifications
Technical illustrations

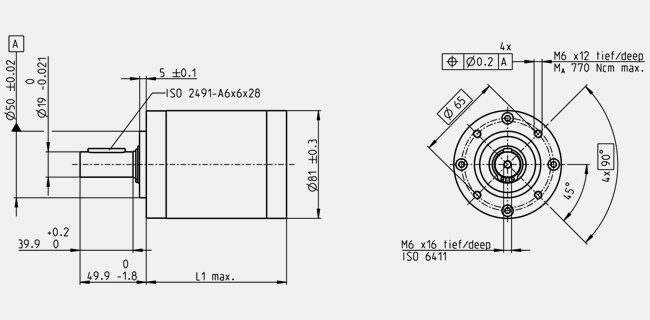

- Dimension drawing
Information: Drawings are not to scale.
| General information | |
| Gearhead type | GP |
| Outer diameter | 81 mm |
| Version | Standard version |
| Gearhead Data | |
| Reduction | 25 : 1 |
| Absolute reduction | 1701/68 |
| Max. motor shaft diameter | 14 mm |
| Number of stages | 2 |
| Max. continuous torque | 60 Nm |
| Max. intermittent torque | 90 Nm |
| Direction of rotation, drive to output | = |
| Max. efficiency | 75 % |
| Average backlash no load | 0.6 ° |
| Mass inertia | 125 gcm² |
| Gearhead length (L1) | 113.7 mm |
| Max. transmittable power (continuous) | 750 W |
| Max. transmittable power (intermittent) | 1100 W |
| Technical Data | |
| Radial play | max. 0.1 mm, 8 mm from flange |
| Axial play | max. 1 mm |
| Max. radial load | 600 N, 24 mm from flange |
| Max. axial load (dynamic) | 120 N |
| Max. force for press fits | 1500 N |
| Max. continuous input speed | 3000 rpm |
| Max. intermittent input speed | 3000 rpm |
| Recommended temperature range | -30...+140 °C |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 3000 g |
