Details

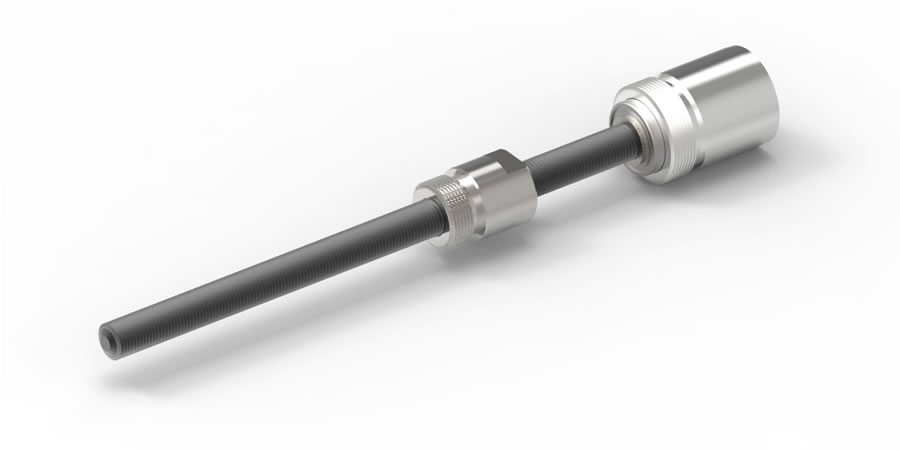

Screw Drive GP 8 S Ø8 mm, Metric spindle, M3 x 0,5, Ceramic Version | Ceramic Version
Part number 437084
This product can no longer be ordered. Please contact our sales support with the form. Thank you
Specifications
| General information | |
| Gearhead type | GP |
| Outer diameter | 8 mm |
| Version | Spindle drive with metric screw |
| Gearhead Data | |
| Number of stages | 3 |
| Reduction | 64 : 1 |
| Absolute reduction | 64/1 |
| Max. motor shaft diameter | 1 mm |
| Max. feed velocity | 1.6 mm/s |
| Max. feed force continuous | 11 N |
| Max. feed force intermittent | 32 N |
| Direction of rotation, drive to output | = |
| Max. efficiency | 31 % |
| Average backlash no load | 2.2 ° |
| Mechanical positioning accuracy | 0.112 mm |
| Mass inertia | 0.004 gcm² |
| Max. transmittable power (continuous) | 0.017 W |
| Max. transmittable power (intermittent) | 0.083 W |
| Technical Data | |
| Spindle length | 49.8 mm |
| Radial play | max. 0.08 mm, 5 mm from flange |
| Max. radial load | 5 N, 5 mm from flange |
| Max. axial load (dynamic) | 11 N |
| Max. force for press fits | 25 N |
| Max. continuous input speed | 12000 rpm |
| Max. intermittent input speed | 20000 rpm |
| Recommended temperature range | -15...+80 °C |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 8 g |
Description
Compact, easy to configure screw drives as complete systems. With integrated axial bearing forhigh axial loads. Versions with ball screw, metric spindle and trapezoidal spindle.
