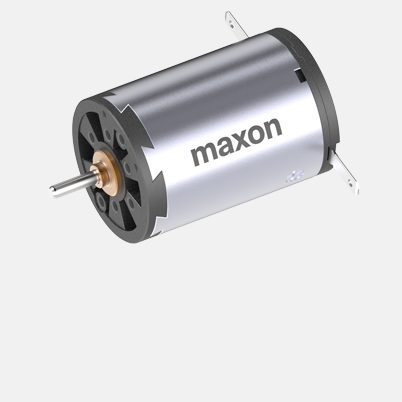

DC-max 22 S Ø22 mm, CLL precious metal brushes, ball bearings
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €90.31* |
| 5-19 | €70.95* | |
| 20-49 | €55.47* | |
| from 50 | On request |
Specifications
Technical illustrations

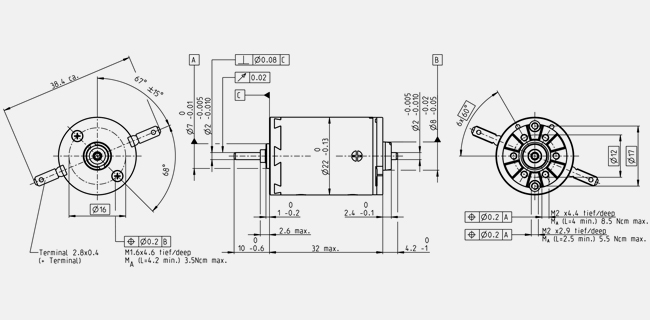

- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 6 V |
| No load speed | 5490 rpm |
| No load current | 18.9 mA |
| Nominal speed | 4280 rpm |
| Nominal torque (max. continuous torque) | 8.55 mNm |
| Nominal current (max. continuous current) | 0.84 A |
| Stall torque | 39 mNm |
| Stall current | 3.75 A |
| Max. efficiency | 86 % |
| Characteristics | |
| Terminal resistance | 1.6 Ω |
| Terminal inductance | 0.119 mH |
| Torque constant | 10.4 mNm/A |
| Speed constant | 919 rpm/V |
| Speed / torque gradient | 141 rpm/mNm |
| Mechanical time constant | 8.44 ms |
| Rotor inertia | 5.7 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 20 K/W |
| Thermal resistance winding-housing | 6 K/W |
| Thermal time constant winding | 17.6 s |
| Thermal time constant motor | 538 s |
| Ambient temperature | -30...+65 °C |
| Max. winding temperature | +85 °C |
| Mechanical data | |
| Bearing type | Waelzlager |
| Max. speed | 9000 rpm |
| Axial play | 0.05 mm, at radial load < 0 N |
| 0.15 mm, at radial load > 0 N | |
| Radial play | 0.025 mm |
| Max. axial load (dynamic) | 3.3 N |
| Max. force for press fits (static) | 45 N |
| (static, shaft supported) | 420 N |
| Max. radial load | 12.3 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of commutator segments | 9 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 54 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
Description
The maxon DC-max motors feature maximum performance at minimum volume and an unrivaled price-performance ratio.The DC-max 22 is a small drive with strong RE magnets, the latest winding technology, and a cost-optimized design, and is made using automated manufacturing processes.
