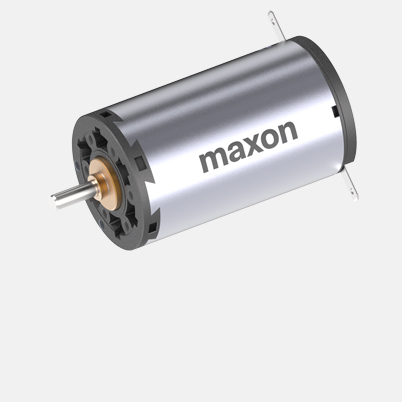

DC-max 26 S Ø26 mm, graphite brushes, sintered bearings
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €139.15* |
| 5-19 | €109.15* | |
| 20-49 | €85.37* | |
| from 50 | On request |
Specifications
Technical illustrations
- Dimension drawing
Information: Drawings are not to scale.
| Values at nominal voltage | |
| Nominal voltage | 24 V |
| No load speed | 8920 rpm |
| No load current | 53 mA |
| Nominal speed | 8100 rpm |
| Nominal torque (max. continuous torque) | 26.3 mNm |
| Nominal current (max. continuous current) | 1.08 A |
| Stall torque | 287 mNm |
| Stall current | 11.2 A |
| Max. efficiency | 87 % |
| Characteristics | |
| Terminal resistance | 2.14 Ω |
| Terminal inductance | 0.278 mH |
| Torque constant | 25.6 mNm/A |
| Speed constant | 373 rpm/V |
| Speed / torque gradient | 31.2 rpm/mNm |
| Mechanical time constant | 4.89 ms |
| Rotor inertia | 14.9 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 13.2 K/W |
| Thermal resistance winding-housing | 3.2 K/W |
| Thermal time constant winding | 17.8 s |
| Thermal time constant motor | 350 s |
| Ambient temperature | -30...+85 °C |
| Max. winding temperature | +100 °C |
| Mechanical data | |
| Bearing type | sleeve bearing |
| Max. speed | 11000 rpm |
| Axial play | 0.1 - 0.2 mm |
| Radial play | 0.012 mm |
| Max. axial load (dynamic) | 1.7 N |
| Max. force for press fits (static) | 80 N |
| (static, shaft supported) | 1200 N |
| Max. radial load | 5.5 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of commutator segments | 13 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 120 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
Description
The maxon DC-max motors feature maximum performance at minimum volume and an unrivaled price-performance ratio.The DC-max 26 is a small drive with strong RE magnets, the latest winding technology, and a cost-optimized design, and is made using automated manufacturing processes.
