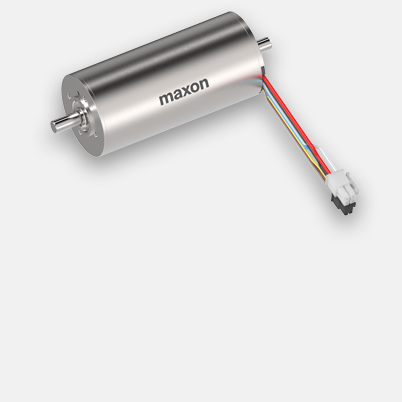

EC-i 52 Ø52 mm, brushless, 200 W, with Hall sensors | High Torque
Part number 606793
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | €373.18 |
| 5-19 | €318.36 | |
| 20-49 | €263.00 | |
| from 50 | On request |
Specifications
| Values at nominal voltage | |
| Nominal voltage | 24 V |
| No load speed | 3340 rpm |
| No load current | 657 mA |
| Nominal speed | 2970 rpm |
| Nominal torque (max. continuous torque) | 640 mNm |
| Nominal current (max. continuous current) | 9.36 A |
| Stall torque | 13800 mNm |
| Stall current | 202 A |
| Max. efficiency | 89 % |
| Characteristics | |
| Terminal resistance | 0.119 Ω |
| Terminal inductance | 0.149 mH |
| Torque constant | 68 mNm/A |
| Speed constant | 140 rpm/V |
| Speed / torque gradient | 0.245 rpm/mNm |
| Mechanical time constant | 0.677 ms |
| Rotor inertia | 264 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 4.02 K/W |
| Thermal resistance winding-housing | 0.53 K/W |
| Thermal time constant winding | 21.7 s |
| Thermal time constant motor | 2310 s |
| Ambient temperature | -40...+100 °C |
| Max. winding temperature | +155 °C |
| Mechanical data | |
| Max. speed | 5000 rpm |
| Axial play | 0 - 0.14 mm |
| Max. axial load (dynamic) | 12 N |
| Max. force for press fits (static) | 150 N |
| (static, shaft supported) | 6000 N |
| Max. radial load | 110 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 8 |
| Number of phases | 3 |
| Product | |
| Weight | 1100 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
