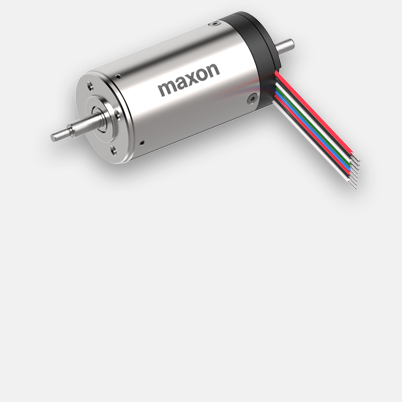

Specifications

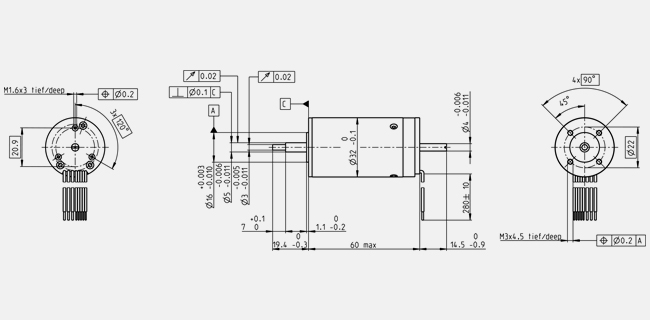

Information: Drawings are not to scale.
| Values at nominal voltage |
| Nominal voltage |
12 V |
| No load speed |
15100 rpm |
| No load current |
662 mA |
| Nominal speed |
13400 rpm |
| Nominal torque (max. continuous torque) |
44.6 mNm |
| Nominal current (max. continuous current) |
6.51 A |
| Stall torque |
428 mNm |
| Stall current |
57.2 A |
| Max. efficiency |
80 % |
| Characteristics |
| Terminal resistance |
0.21 Ω |
| Terminal inductance |
0.03 mH |
| Torque constant |
7.48 mNm/A |
| Speed constant |
1280 rpm/V |
| Speed / torque gradient |
35.8 rpm/mNm |
| Mechanical time constant |
7.49 ms |
| Rotor inertia |
20 gcm² |
| Thermal data |
| Thermal resistance housing-ambient |
5.4 K/W |
| Thermal resistance winding-housing |
2.5 K/W |
| Thermal time constant winding |
14.8 s |
| Thermal time constant motor |
1180 s |
| Ambient temperature |
-20...+100 °C |
| Max. winding temperature |
+125 °C |
| Mechanical data |
| Bearing type |
ball bearings |
| Max. speed |
25000 rpm |
| Axial play |
0 - 0.14 mm |
| Max. axial load (dynamic) |
5.6 N |
| Max. force for press fits (static) |
98 N |
| (static, shaft supported) |
1200 N |
| Max. radial load |
28 N, 5 mm from flange |
| Other specifications |
| Number of pole pairs |
1 |
| Number of phases |
3 |
| Number of autoclave cycles |
0 |
| Product |
| Weight |
270 g |
| | | Continuous operation range
|
| | |
|
| | | |
| | | Short term operation range
|
| | |
|
Description
The electronically commutated EC motors are characterized especially by their favorable torque characteristics, high power, extremely broad speed range and, of course, by their unsurpassed service life.
