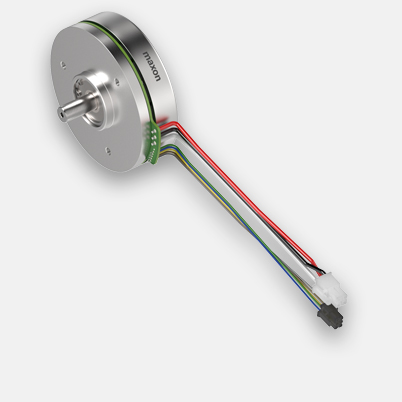

EC 90 flat Ø90 mm, brushless, 220 W, with Hall sensors and cables | Open rotor

Part number 607948

EC 90 flat Ø90 mm, brushless, 220 W, with Hall sensors and cables
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €247.15
5-19 €207.36
20-49 €179.68
from 50 On request

Specifications

Technical illustrations

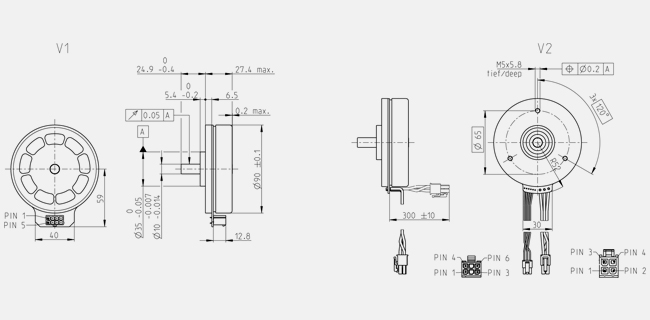

  • Dimension drawing
Values at nominal voltage
Nominal voltage 60 V
No load speed 2600 rpm
No load current 197 mA
Nominal speed 2020 rpm
Nominal torque (max. continuous torque) 691 mNm
Nominal current (max. continuous current) 2.96 A
Stall torque 4540 mNm
Stall current 29.6 A
Max. efficiency 84 %
Characteristics
Terminal resistance 2.03 Ω
Terminal inductance 2.15 mH
Torque constant 217 mNm/A
Speed constant 44.1 rpm/V
Speed / torque gradient 0.412 rpm/mNm
Mechanical time constant 12.4 ms
Rotor inertia 2880 gcm²
Thermal data
Thermal resistance housing-ambient 1.53 K/W
Thermal resistance winding-housing 1.23 K/W
Thermal time constant winding 22.8 s
Thermal time constant motor 227 s
Ambient temperature -40...+100 °C
Max. winding temperature +125 °C
Mechanical data
Bearing type ball bearings
Max. speed 5000 rpm
Axial play 0 mm, at radial load < 58 N
0.14 mm, at radial load > 58 N
Max. axial load (dynamic) 34 N
Max. force for press fits (static) 440 N
(static, shaft supported) 8000 N
Max. radial load 100 N, 10 mm from flange
Other specifications
Number of pole pairs 11
Number of phases 3
Number of autoclave cycles 0
Product
Weight 624 g

Description

The flat design of the brushless EC flat motors makes them the perfect solution for many applications. The thought-through, simple design makes it possible to largely automate the manufacturing—this is reflected by the economical price.

The open rotor supports cooling during operation, which permits greater continuous torques.
