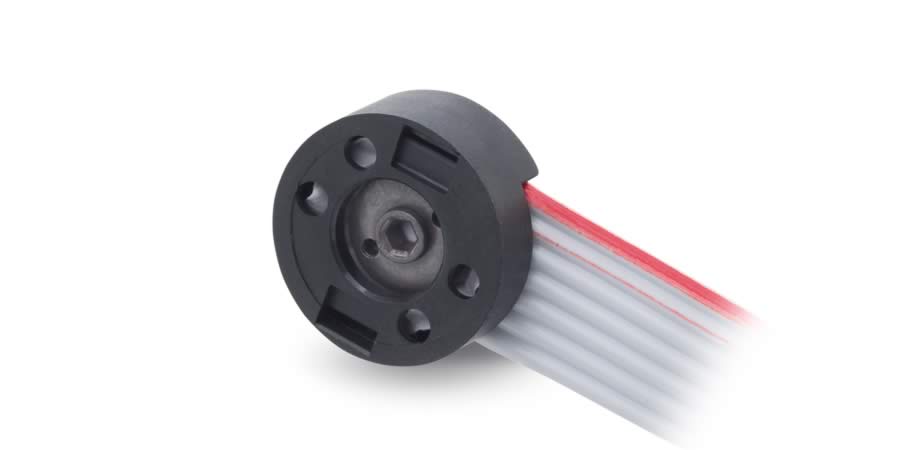

Encoder MR, Type S, 128 CPT, 2 Channels, with Line Driver

Part number 323051

Encoder MR, Type S, 128 CPT, 2 Channels, with Line Driver
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 €118.27
5-19 €104.36
20-49 €88.00
from 50 On request

Sensors can be purchased only as a component of a combination.

Specifications

General information
Counts per turn 128
Number of channels 2
Line Driver Yes
Max. mechanical speed 75000 rpm
Technical Data
Supply voltage Vcc 4.7...5.2 V
Driver used logic TTL
Output current per channel 0...5 mA
Phase shift 90 °e
Phase shift, inaccuracy 45 °e
Index synchronized to AB No
Max. moment of inertia of code wheel 0.005 gcm²
Operating temperature -25...+85 °C

Description

High precision encoders, DC tachometers and resolvers with a high signal resolution are mounted exclusively on motors with through shafts for resonance reasons. The assembly requires adjustment to the motors and may only be done in the delivery plant.
