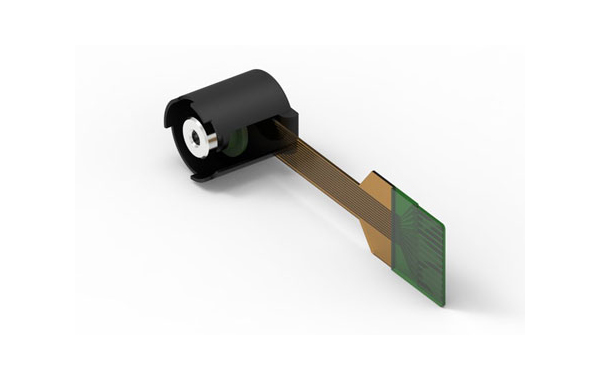

Encoder ENX 6 OPT, 128 counts per turn, 3-channel
This product can no longer be ordered. Please contact our sales support with the form. Thank you
Specifications
| General information | |
| Counts per turn | 128 |
| Number of channels | 3 |
| Line Driver | No |
| Max. length of encoder housing | 2.3 mm |
| Max. electrical speed | 120000 rpm |
| Max. mechanical speed | 60000 rpm |
| Technical Data | |
| Supply voltage Vcc | 3...6 V |
| Output signal | CMOS |
| Output signal | Incremental |
| Driver used logic | SingleEnded, CMOS |
| Output current per channel | max. 5 mA |
| Signal rise time | 300 ns |
| Measurement condition for signal rise time | CLEqual25pFRLEqual1kOhmTEqual25C |
| Signal fall time | 300 ns |
| Measurement condition for signal fall time | ClEqual25pFRLEqual1kOhmTEqual25C |
| Direction of rotation | AbeforeBCCW |
| Index position | AhighBhigh |
| Index synchronized to AB | Yes |
| Typical current draw at standstill | 4 mA |
| Max. moment of inertia of code wheel | 0.001 gcm² |
| Operating temperature | -20...+85 °C |
| Orientation of encoder output to motor flange | 0 ° |
| Product | |
| Weight | 1 g |
