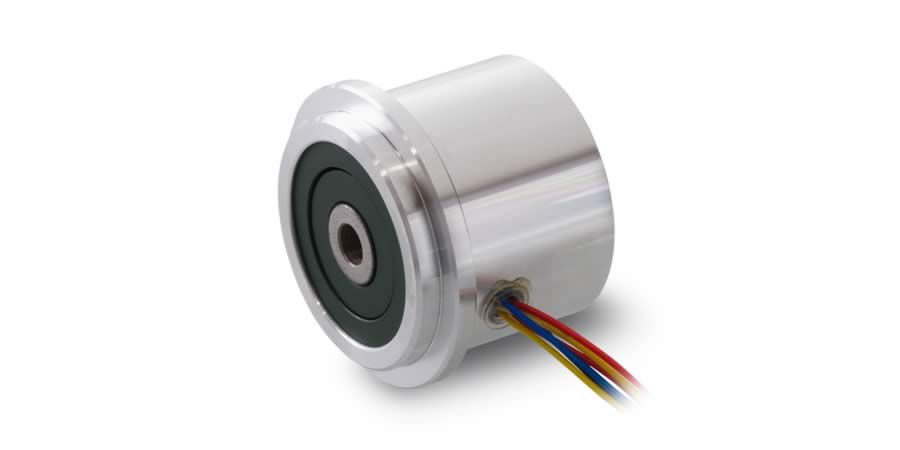

Specifications

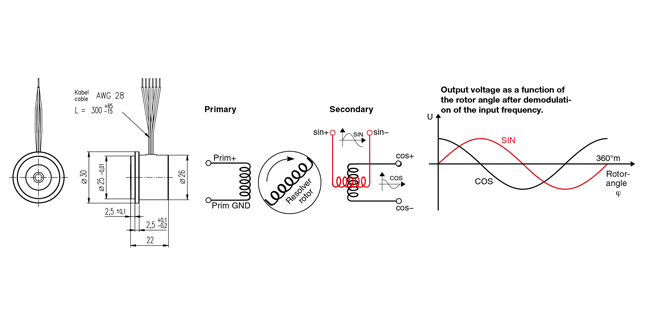

Information: Drawings are not to scale.
| General information |
| Max. mechanical speed |
10000 rpm |
| Shaft diameter |
6 mm |
| Technical Data |
| Input voltage |
10 V peak, 10 kHz |
| Electrical error |
±10 min. |
| Phase shift |
90 °e |
| Phase shift, inaccuracy |
45 °e |
| Rotor inertia |
6 gcm² |
| Operating temperature |
-55...+155 °C |
| Product |
| Weight |
40 g |
Description
High precision encoders, DC tachometers and resolvers with a high signal resolution are mounted exclusively on motors with through shafts for resonance reasons. The assembly requires adjustment to the motors and may only be done in the delivery plant.
